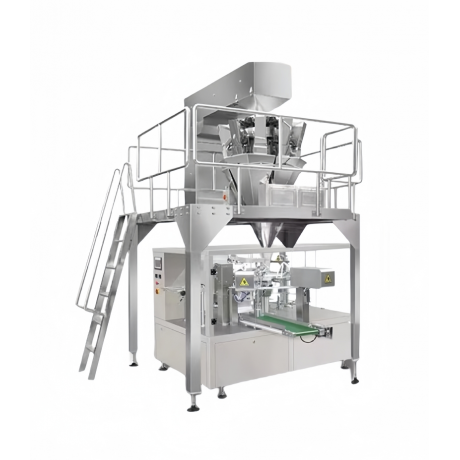

Automatic Rotary Premade Bag Packaging Machine
Max speed: 70 bags per minute
Can provide CE certification
Specification
YASHICUN-8S-260 Automatic Rotary Premade pouch Machine
1. The YASHICUN-8S-260 standard model weighs 1500kg, reflecting our high standards in utilizing stainless steel materials for both the machine frame and all workstations.
-At a high-speed operation of 70 bags per minute:
- The bag pickup column remains stable without vibration.
- The bag gripper securely holds 3-4kg of material.
- The bag detection device operates accurately along the work path.
- The heat sealing unit’s stability ensures neat and consistent sealing.
2. The machine features a cam-driven system with cams made from 20CrTi and 40Cr, offering high hardness, wear resistance, and impact resistance, making it ideal for high-speed, heavy-duty packaging line
3. The gear-to-gear mechanical transmission structure provides high precision, efficiency, and speed, making it suitable for heavy-duty operations with a long service life and no easily worn parts.
4. The independently developed indexing box ensures high indexing accuracy and excellent high-speed performance, enabling smooth operation, low noise, and a lifespan exceeding 5 years.
Features:
1. 8 stations, single bag operation
2. Siemens PLC and 10-inch Siemens touch screen
3. Cam-driven, gear-to-gear mechanism ensures high stability and efficiency
4. Highly durable welded 304 stainless steel frame
5. Automatic fault detection and alarm system
6. Pouch presence detection – no filling, no sealing
7. One-touch bag width adjustment8. Two-step sealing process guarantees clean sealing
Features
|
Model |
4S-250 | 6S-200 | 8S-200A | 8S-250 | 8S-260 | 8S-300 | 10S-160 |
| Number of stations | 4 | 6 | 8 | 8 | 8 | 8 | 10 |
|
Number of Lanes |
1 | 1 | 1 | 1 | 1 | 1 | 1 |
|
Maximum Speed Per Minute (dry cycle) |
25 | 50 | 35 | 50 | 50 | 40 | 50 |
|
Bag Gripping Range (mm) |
90-250mm |
70-200mm |
100-200mm | 90-235mm | 100-245 | 200-300 | 90-150mm |
|
Maximum Bag Length (mm) |
300mm |
300mm(350mm with extender) |
300mm(350mm with extender) |
380mm(420mm with extender) |
380mm(420mm with extender) |
430mm |
300mm |
|
Power Supply |
4.5kw (38oV,three-phase,60Hz.,) |
4.5kw (38oV,three-phase,60Hz.,) |
4,5kw (38oV,three-phase,60Hz.,) |
4.5kw (38oV,three-phase,60Hz.,) |
4.5kw (38oV,three-phase,60Hz.,) |
4.5kw (38oV,three-phase,60Hz.,) |
4.5kw (38oV,three-phase,60Hz.,) |
|
Compressed Air |
Approx. 400NL/min, 3~4kgf/cm2 |
Approx.500NL/min,4-5kgf/cm |
Approx. 600NL/min, 5~6kgf/cm2 |
Approx. 600NL/min, 5~6kgf/cm2 |
Approx. 600NL/min, 5~6kgf/cm2 |
Approx. 600NL/min, 5~6kgf/cm2 |
Approx. 600NL/min, 5~6kgf/cm2 |
Options:
1. Product filling – compatible with multi-head scales, volumetric fillers, and auger fillers
2. Fully interlocked safety guards
3. Long raised rotary shaft extender for longer bags
4. Extended bag magazine
5. Date coding: emboss, hot stamp, inkjet, or thermal transfer
6. Quality control: checkweigher, metal detector, X-ray inspection
7. Dust suction nozzles and dust collector
8. Bag supporter for heavy fills
9. Ethernet connectivity
10. 99.99% purity nitrogen gas flush function
11. Exhaust system
Technical Specifications:
1. Net Weight of Standard Machine: 1458 kg
2. Number of Stations: 8
3. Maximum Speed Per Minute (dry cycle): 60-80 bags
4. Gripping Range (mm): 90-250mm
5. Maximum Gripping Force (kg): 4kg
6. Maximum Bag Length (mm): 420mm
7. Power Supply: 380 V / 3 Ph / 60 Hz (customizable)
8. Compressed Air: Approx. 700NL/min, 5-6kgf/cm²
9.Machine dimensions (LxWxH): 2000mm x 1600mm x 1600mm
Main Configuration:
1. PLC: Siemens (Germany)
2. Touchscreen: Siemens (Germany)
3. Inverter: Siemens (Germany)
4. Main Motor: Siemens (Germany)
5. Vacuum Pump: ORION (Japan)
6. Solenoid Valve: FESTO (Germany)
7. Composite Engineering Bearing: Igus (Germany)
