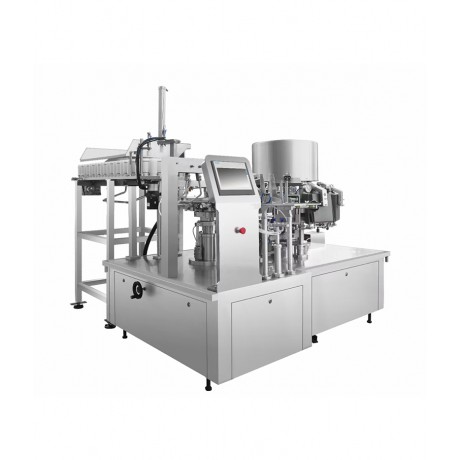

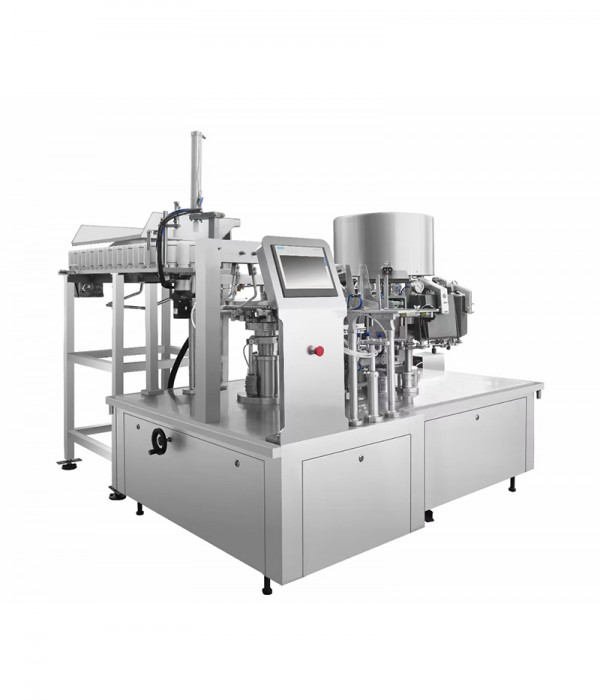

Rotary Filling and Sealing Machinery for vacuum bags
This Rotary Filling and Sealing Machinery is designed for packaging mango pieces in vacuum bags
Specification
8/10 stations, Vacuum bag
PLC control with touch screen operation
CAM-driven control platform
Highly durable welded steel frame
Waterproof system makes cleaning more convenient
Pouch presence detection – no filling, no sealing
Bag deflation with wire guide or push bars
Automatic deoxidizer feeding station
Two step sealing process guarantees clean sealing
Cooling station for liquid products
Features
Our most popular simplex premade pouch filling and sealing machine for bags up to 245 mm wide at speeds up to 50. cycles per minute
|
Model |
4S-250 | 6S-200 | 8S-200A | 8S-250 | 8S-260 | 8S-300 | 10S-160 |
| Number of stations | 4 | 6 | 8 | 8 | 8 | 8 | 10 |
|
Number of Lanes |
1 | 1 | 1 | 1 | 1 | 1 | 1 |
|
Maximum Speed Per Minute (dry cycle) |
25 | 50 | 35 | 50 | 50 | 40 | 50 |
|
Bag Gripping Range (mm) |
90-250mm |
70-200mm |
100-200mm | 90-235mm | 100-245 | 200-300 | 90-150mm |
|
Maximum Bag Length (mm) |
300mm |
300mm(350mm with extender) |
300mm(350mm with extender) |
380mm(420mm with extender) |
380mm(420mm with extender) |
430mm |
300mm |
|
Power Supply |
4.5kw (38oV,three-phase,60Hz.,) |
4.5kw (38oV,three-phase,60Hz.,) |
4,5kw (38oV,three-phase,60Hz.,) |
4.5kw (38oV,three-phase,60Hz.,) |
4.5kw (38oV,three-phase,60Hz.,) |
4.5kw (38oV,three-phase,60Hz.,) |
4.5kw (38oV,three-phase,60Hz.,) |
|
Compressed Air |
Approx. 400NL/min, 3~4kgf/cm2 |
Approx.500NL/min,4-5kgf/cm |
Approx. 600NL/min, 5~6kgf/cm2 |
Approx. 600NL/min, 5~6kgf/cm2 |
Approx. 600NL/min, 5~6kgf/cm2 |
Approx. 600NL/min, 5~6kgf/cm2 |
Approx. 600NL/min, 5~6kgf/cm2 |
Options:
Proprietary Yashicun robotic pick & place bag infeed system
Product filling – can be integrated with multi-head scales, volumetric fillers and auger fillers
Long raised rotary shaft extender for longer bags
Extended bag magazine
Date coding: emboss, hot stamp, inkjet or thermal transfer
Quality control: checkweigher, metal detector, X-ray inspection
Dust suction nozzles and dust collector
Product settler
Bag supporter for heavy fills
Gas flush
Bag rejection system
Stand-up discharge
Electrical Configuration:
| Main Conponents | Supplier |
| PLC | Siemens |
| Touch Screen |
Siemens |
| Inverter | Schneider |
| Vacuum generator | SMC Japan |
| Photocell Autonics Korea | BANNER |
| Main Motor |
Siemens |
| Pneumatic Parts |
SMC Japan |
|
The electromagnetic valve |
SMC Japan |
