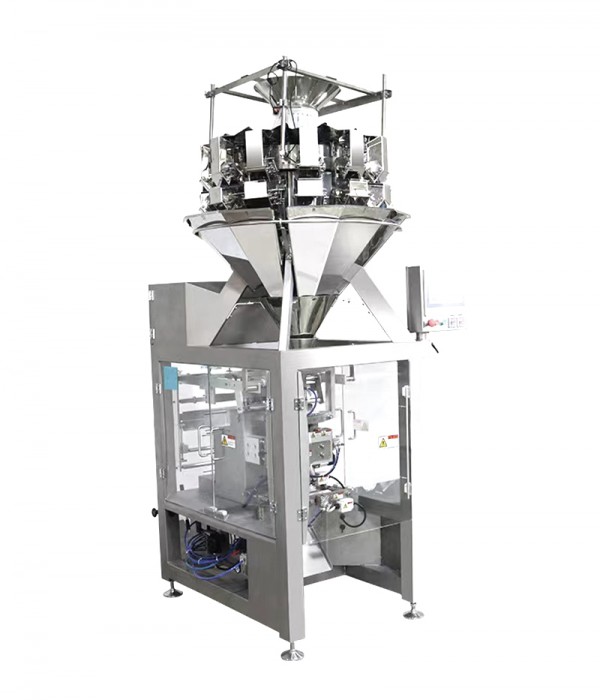

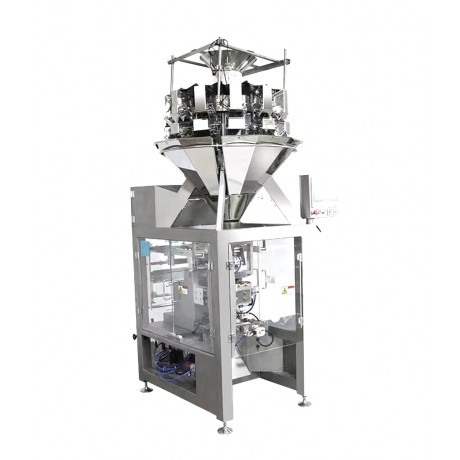

Sachets Weighing Packing Machine
This multihead weigher sachet packing machine is USD 10,800 based on FOB China Port.
The whole machineis controlled by three servos, conforms to GMP standard,with CE certification.
Category: Vertical Form Fill Seal Machine
Specification
| Display | 10 inch touch screen |
|
Head Scale |
12 Heads |
|
Scale bucket Volume Hopper material Single Weigh Range Max.weight |
0.8L 304 stainless steel 10-300g 300g |
|
Weigh accuracy |
2土0.5-1.5g |
|
Packing Speed |
20-100bags/min (depends on the materials ) |
|
Max Film Width Bag Size Film Roll |
300mm 50-150mm Width, 50-190mm Length PP、CPP、PVC、PS、EVA、PET、PVDC/PVC、OPP/CPP etc. |
|
Film Thickness |
0.04-0.08mm |
|
Film Pulley driven End Jaws driven Air Consumption |
By Servo By cylinder 0.6 Mpa, 0.3m3/min |
|
Power supply |
220v 50Hz |
|
General power |
5.1Kw |
| Net weight |
800Kg |
| Machine size | 1609 x 1007 x 2513mm |
Types of Bags
-
Pillow
-
Flat bottom
-
Quad pack: flat bottom 4 side sealing
-
Doy pack
-
D-Bag: no top fin
2 Sided tucked (gusseted)
-
-
Re-closeable
Options:
-
Gas flushing
-
Polyethylene sealing
-
Anti-bridging device
-
Anti-static system
-
Punch for euroslot or round hole
-
Tear notch for easy opening
-
Printers
-
Metal detector
-
Duplex configuration
-
Right or left hand configuration
-
Product settling device
-
Lower flap folder (heated or not-heated)
-
Stainless steel available
-
Auto-splice
-
Ethernet connectivity
2 Sided tucked (gusseted)
Options:
- Gas flushing
- Polyethylene sealing
- Anti-bridging device
- Anti-static system
- Punch for euroslot or round hole
- Tear notch for easy opening
- Printers
- Metal detector
- Duplex configuration
- Right or left hand configuration
- Product settling device
- Lower flap folder (heated or not-heated)
- Stainless steel available
- Auto-splice
- Ethernet connectivity
Features
Unpacking the Future: Understanding the Role of Automatic Weighing and Sachet Packing Machines
In the technologically-driven era of Industry 4.0, the need for operational efficiency and accuracy in all stages of production cannot be overstated. Nowhere is this truer than in the world of packaging. Given the rapid surge in consumer demand across industries, businesses are shifting to automated processes to ensure both quality and quantity of their product packaging.
What is an Automatic Weighing and Sachet Packing Machine?
An Automatic Weighing and Sachet Packing Machine is an ingenious combination of two critical industrial processes - weighing and packaging. This machine is designed to automate these steps to enhance accuracy, speed, and overall efficiency.
The Automatic Weighing and Sachet Packing Machine typically functions in several steps: First, it accurately weighs the product using integrated weighing systems. Next, it packages the weighed product into suitable packaging material. This entire process is performed automatically, reducing human intervention and, consequently, human error.
The Key Components of an Automatic Weighing and Sachet Packing Machine
An Automatic Weighing and Sachet Packing Machine usually comprises several key components:
Feeding System: This system controls the flow of products to be weighed and packaged. It ensures the right amount of product is fed into the machine for accurate weighing.
Weighing System: This is the heart of the machine, ensuring that each product is weighed accurately before packaging. It might consist of load cells, balances, or scales, depending on the machine model and purpose.
Packaging System: This part of the machine wraps the weighed product in packaging material. Depending on the type of machine, this can involve sealing, wrapping, or bagging the product.
The Benefits of Automatic Weighing and Sachet Packing Machines
Efficiency: The most significant advantage of these machines is their ability to streamline and automate the weighing and packaging process, thereby significantly boosting efficiency.
Accuracy: These machines provide a high level of accuracy in weighing, which is critical in industries where precision matters, such as pharmaceuticals and food manufacturing.
Reduced Labor Costs: As the machine performs most tasks automatically, businesses can save on labor costs while minimizing human error.
Scalability: Automatic Weighing and Sachet Packing Machines can easily handle increased production volumes, allowing businesses to scale operations quickly to meet market demand.
Customizability: These machines can be configured to handle a wide range of products and packaging types, making them versatile additions to any production line.
The advent of Automatic Weighing and Sachet Packing Machines represents a significant milestone in the packaging industry's evolution. As we move further into the era of automation, these machines will continue to play a pivotal role in shaping the future of production processes across numerous sectors. With their promise of increased efficiency, accuracy, and scalability, it's safe to say that the future of packaging looks brighter than ever.
In the technologically-driven era of Industry 4.0, the need for operational efficiency and accuracy in all stages of production cannot be overstated. Nowhere is this truer than in the world of packaging. Given the rapid surge in consumer demand across industries, businesses are shifting to automated processes to ensure both quality and quantity of their product packaging.
In this quest for efficiency, one piece of equipment has taken center stage - the Automatic Weighing and Sachet Packing Machine. But what exactly is this machine, and how does it contribute to the packaging process? Let's delve deeper into this revolutionary technology.
What is an Automatic Weighing and Sachet Packing Machine?
An Automatic Weighing and Sachet Packing Machine is an ingenious combination of two critical industrial processes - weighing and packaging. This machine is designed to automate these steps to enhance accuracy, speed, and overall efficiency.
The Automatic Weighing and Sachet Packing Machine typically functions in several steps: First, it accurately weighs the product using integrated weighing systems. Next, it packages the weighed product into suitable packaging material. This entire process is performed automatically, reducing human intervention and, consequently, human error.
These machines can handle a variety of materials ranging from food items, pharmaceuticals, and agricultural produce, to industrial components, ensuring each product is packaged at its precise weight.
The Key Components of an Automatic Weighing and Sachet Packing Machine
An Automatic Weighing and Sachet Packing Machine usually comprises several key components:
Feeding System: This system controls the flow of products to be weighed and packaged. It ensures the right amount of product is fed into the machine for accurate weighing.
Weighing System: This is the heart of the machine, ensuring that each product is weighed accurately before packaging. It might consist of load cells, balances, or scales, depending on the machine model and purpose.
Packaging System: This part of the machine wraps the weighed product in packaging material. Depending on the type of machine, this can involve sealing, wrapping, or bagging the product.
Control System: This is essentially the 'brain' of the machine. It uses software to coordinate all the other systems, ensuring they function smoothly and efficiently.
The Benefits of Automatic Weighing and Sachet Packing Machines
Efficiency: The most significant advantage of these machines is their ability to streamline and automate the weighing and packaging process, thereby significantly boosting efficiency.
Accuracy: These machines provide a high level of accuracy in weighing, which is critical in industries where precision matters, such as pharmaceuticals and food manufacturing.
Reduced Labor Costs: As the machine performs most tasks automatically, businesses can save on labor costs while minimizing human error.
Scalability: Automatic Weighing and Sachet Packing Machines can easily handle increased production volumes, allowing businesses to scale operations quickly to meet market demand.
Customizability: These machines can be configured to handle a wide range of products and packaging types, making them versatile additions to any production line.
Sustainability: With advancements in technology, these machines are becoming increasingly energy-efficient, contributing to reduced environmental impact.
The advent of Automatic Weighing and Sachet Packing Machines represents a significant milestone in the packaging industry's evolution. As we move further into the era of automation, these machines will continue to play a pivotal role in shaping the future of production processes across numerous sectors. With their promise of increased efficiency, accuracy, and scalability, it's safe to say that the future of packaging looks brighter than ever.
