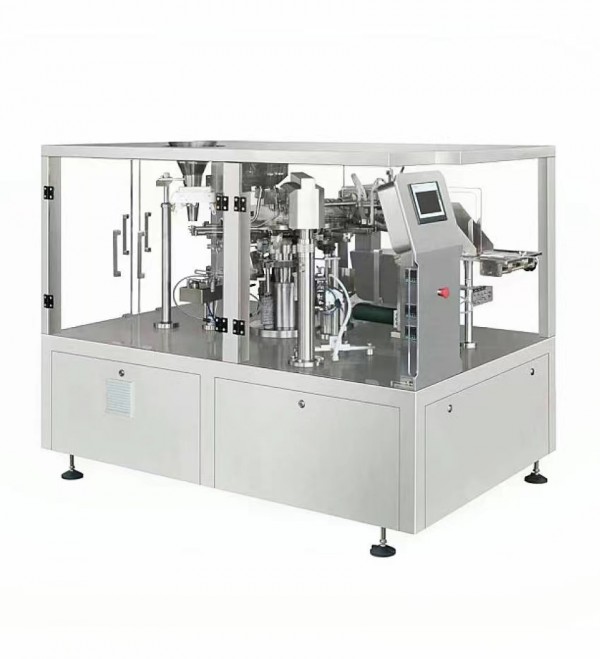

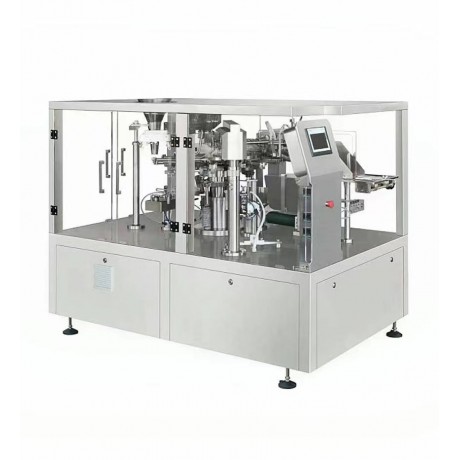

Stand Up Pouch Filling Packing Machine
Max Speed: 60 bags / min
Bag size:
Max. 250 x 300 mm
Min. 90 x 40 mm
Specification
8 stations, single bag
PLC / touch screen is Siemens
CAM-driven control platform
Highly durable welded steel frame
Waterproof system makes cleaning more convenient
Pouch presence detection – no filling, no sealing
Bag deflation with wire guide or push bars
Automatic deoxidizer feeding station
Two step sealing process guarantees clean sealing
Cooling station for liquid products
Features
Our most popular simplex premade pouch filling and sealing machine for bags up to 245 mm wide at speeds up to 50. cycles per minute
|
Model |
4S-250 | 6S-200 | 8S-200A | 8S-250 | 8S-260 | 8S-300 | 10S-160 |
| Number of stations | 4 | 6 | 8 | 8 | 8 | 8 | 10 |
|
Number of Lanes |
1 | 1 | 1 | 1 | 1 | 1 | 1 |
|
Maximum Speed Per Minute (dry cycle) |
25 | 50 | 35 | 50 | 50 | 40 | 50 |
|
Bag Gripping Range (mm) |
90-250mm |
70-200mm |
100-200mm | 90-235mm | 100-245 | 200-300 | 90-150mm |
|
Maximum Bag Length (mm) |
300mm |
300mm(350mm with extender) |
300mm(350mm with extender) |
380mm(420mm with extender) |
380mm(420mm with extender) |
430mm |
300mm |
|
Power Supply |
4.5kw (38oV,three-phase,60Hz.,) |
4.5kw (38oV,three-phase,60Hz.,) |
4,5kw (38oV,three-phase,60Hz.,) |
4.5kw (38oV,three-phase,60Hz.,) |
4.5kw (38oV,three-phase,60Hz.,) |
4.5kw (38oV,three-phase,60Hz.,) |
4.5kw (38oV,three-phase,60Hz.,) |
|
Compressed Air |
Approx. 400NL/min, 3~4kgf/cm2 |
Approx.500NL/min,4-5kgf/cm |
Approx. 600NL/min, 5~6kgf/cm2 |
Approx. 600NL/min, 5~6kgf/cm2 |
Approx. 600NL/min, 5~6kgf/cm2 |
Approx. 600NL/min, 5~6kgf/cm2 |
Approx. 600NL/min, 5~6kgf/cm2 |
Options:
Proprietary Yashicun robotic pick & place bag infeed system
Product filling – can be integrated with multi-head scales, volumetric fillers and auger fillers
Long raised rotary shaft extender for longer bags
Extended bag magazine
Date coding: emboss, hot stamp, inkjet or thermal transfer
Quality control: checkweigher, metal detector, X-ray inspection
Dust suction nozzles and dust collector
Product settler
Bag supporter for heavy fills
Gas flush
Bag rejection system
Stand-up discharge
Electrical Configuration:
| Main Conponents | Supplier |
| PLC | Siemens |
| Touch Screen |
Siemens |
| Inverter | Schneider |
| Vacuum generator | SMC Japan |
| Photocell Autonics Korea | BANNER |
| Main Motor |
Siemens |
| Pneumatic Parts |
SMC Japan |
|
The electromagnetic valve |
SMC Japan |
Stand Up Pouch Filling Machine: Elevate Your Packaging Game
In the world of packaging, convenience and aesthetics are paramount. The stand up pouch filling machine from YSC Packaging Machine is designed to meet these demands while ensuring efficiency and quality. Whether you're in the food, beverage, or consumer goods industry, our machine offers a versatile solution for filling and sealing stand-up pouches.
YSC Stand Up Pouch Filling Machine Key Features
- Versatile Filling Options: Our stand up pouch filling machine supports various filling methods, including gravity, volumetric, and auger dosing, catering to diverse product types.
- High Production Speed: Achieve up to 100 cycles per minute, ensuring rapid processing and high output.
- Precision and Accuracy: Equipped with advanced sensors and controls, our machine ensures precise filling every time, minimizing waste and enhancing product consistency.
- User-Friendly Interface: Intuitive operation with easy-to-navigate controls, making it simple for operators of all skill levels.
- Customizable Solutions: Tailor the machine to your specific needs with options for different pouch sizes, shapes, and materials.
YSC Stand Up Pouch Filling Machine Benefits
- Enhanced Product Appeal: Stand-up pouches offer a modern, eye-catching presentation that stands out on store shelves.
- Efficient Packaging: Streamline your packaging process, reducing labor costs and increasing efficiency.
- Sustainable Choice: Our machines are designed to reduce material waste, contributing to a more sustainable production process.
- Reliable Performance: Built with durable components, our stand up pouch filling machine delivers long-lasting performance and minimal downtime.
YSC Stand Up Pouch Filling Machine Applications
- Food Industry: Ideal for filling snacks, grains, sauces, and more.
- Beverage Sector: Perfect for liquid products like juices and teas.
- Consumer Goods: Suitable for pet food, cosmetics, and household products.
Why Choose YSC Stand Up Pouch Filling Machine?
At YSC Packaging Machine, we are committed to providing innovative and reliable packaging solutions. Our stand up pouch filling machine is a testament to our dedication to quality and customer satisfaction. Whether you're looking to upgrade your existing packaging line or start fresh, our machine is the perfect choice for your business needs.
Explore our range of packaging solutions and discover how our stand up pouch filling machine can elevate your product packaging to the next level.
